Acoem Wireless Balancer

Acoem adalah pelopor dalam teknologi nirkabel untuk condition monitoring. Selama beberapa dekade, bidang penyeimbangan mesin hampir tidak mengalami inovasi, hingga Acoem menghadirkan terobosan melalui perangkat seperti Falcon wireless data collector dan Eagle wireless diagnostic tool.

Inovasi tersebut kini berlanjut melalui Wireless Balancer, solusi canggih untuk balancing satu & dua bidang pada mesin berputar dengan rotor kaku. Dirancang untuk meningkatkan keselamatan operator dan efisiensi pekerjaan, Wireless Balancer memberikan diagnosis real-time yang akurat tanpa kerumitan kabel seperti sistem konvensional.

Minta Penawaran

Features

6-channel wireless vibration testing
Acoem’s advanced system enables comprehensive vibration analysis with 2 triaxial wireless sensors, ensuring precise diagnostics across multiple axes
Dual-plane synchronous wireless balancing
Achieve superior machine balance with ACOEM WBS™ technology which synchronises vibration and tachometer data in real time
Control plane visualisation
See the impact of adjustments on the second plane instantly, helping you make better balancing decisions with greater accuracy
GuideU™ – intuitive assistance
Acoem’s intuitive GuideU™ 3D graphical interface provides clear visual guidance that helps minimise human error.
360° machine view
Rotate the machine as you see it, minimising alignment errors and ensuring a seamless balancing process
Smart balancing assistants
Optimise balancing with one or 2-plane selection, trial weight recommendations, automatic weight splitting and more for faster, more efficient corrections.
Compact & portable
Your complete balancing kit fits into a compact case weighing less than 2 kg, ensuring effortless transport and quick deployment in the field.
Low total cost of ownership
With a fully-wireless system, say goodbye to cable replacements and unnecessary maintenance costs
All-in-one ecosystem

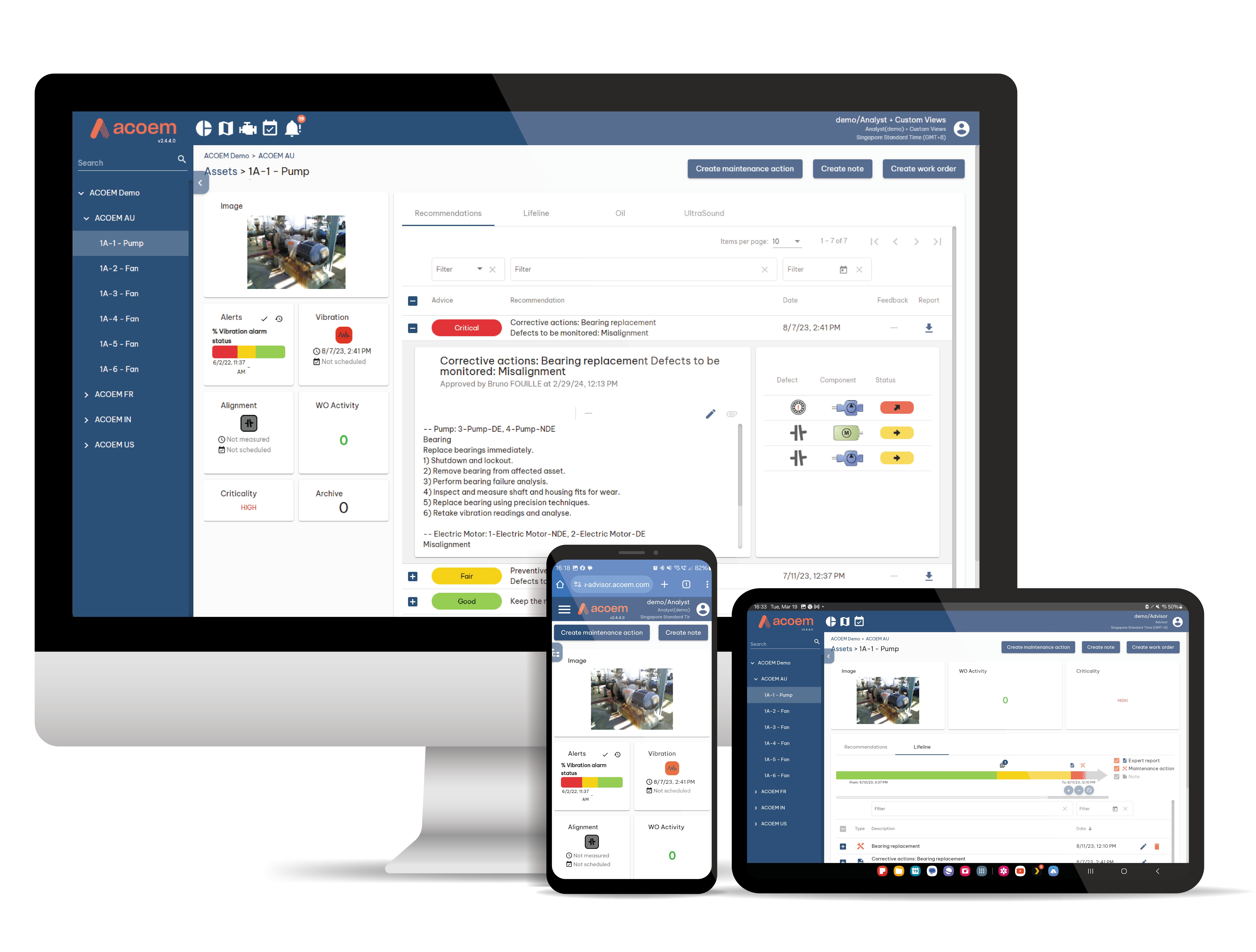

Seamless integration with Acoem’s shaft alignment apps, Bearing Defender and Machine Defender, and receive actionable data within NEST Vision, providing a complete monitoring and maintenance solution.

Resources

Acoem Wireless Balancer
Brochure Acoem Wireless Balancer
Technical Datasheet

See our technology in action.

Schedule a free demo to get a first-hand look at how our solutions support your business.

Schedule a free demo

How It Works

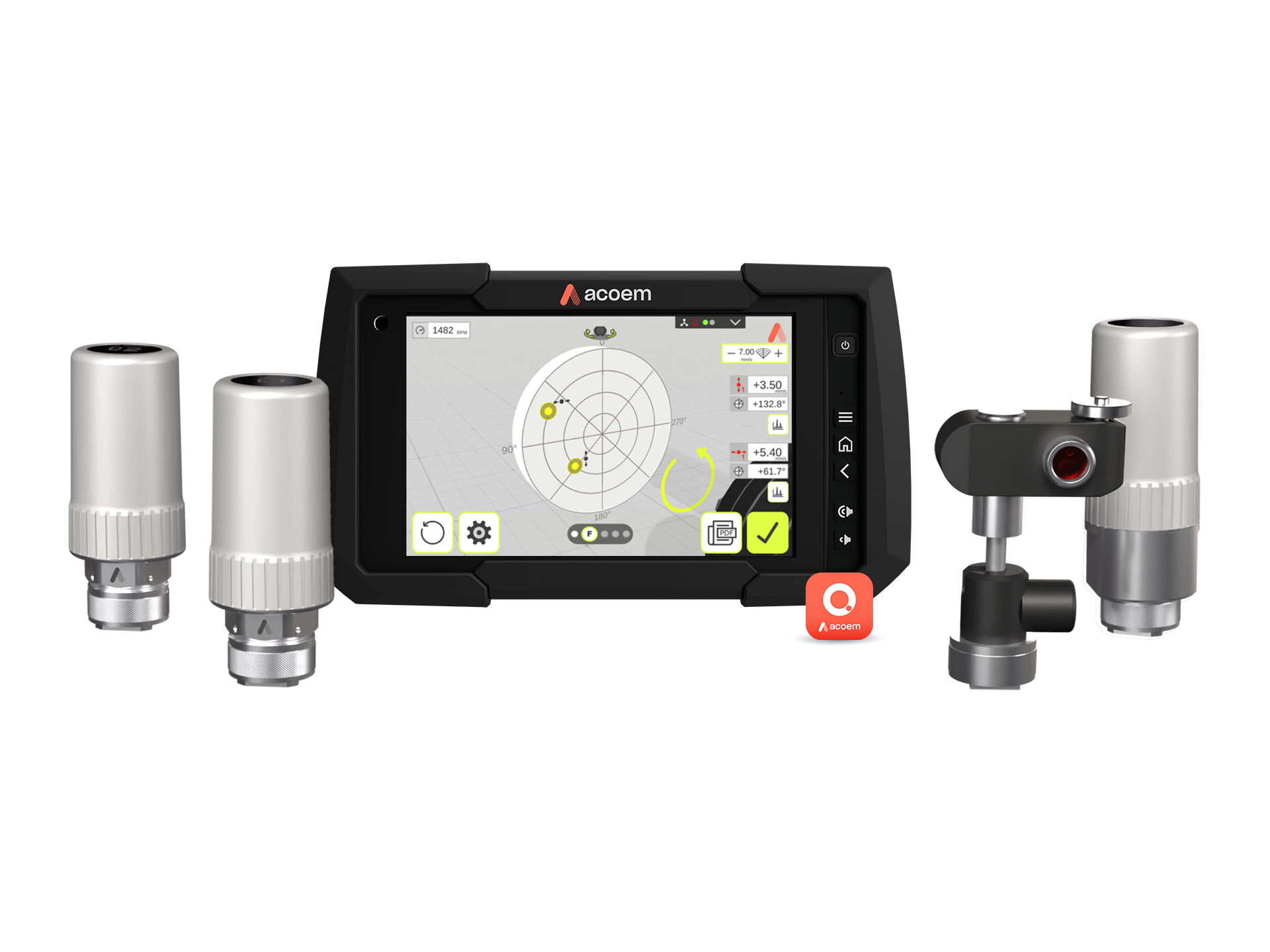

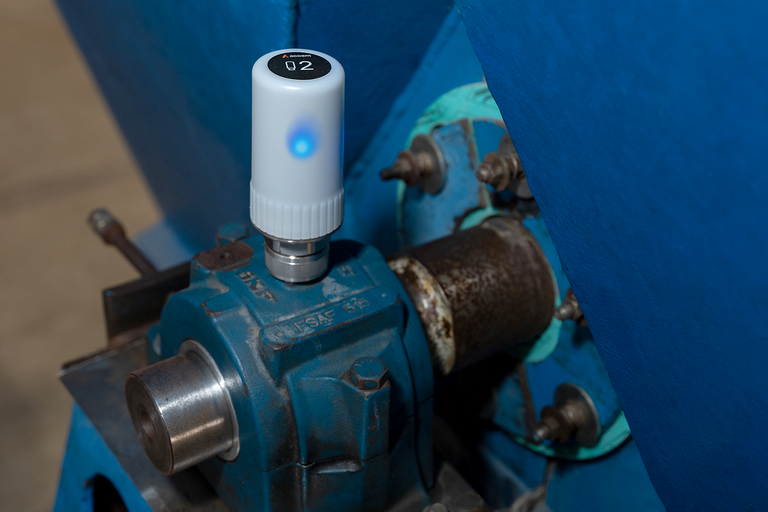

The Acoem Wireless Balancer features 2 wireless accelerometers and a laser tachometer, all connected to the timekeeper device. The timekeeper communicates wirelessly with both sensors and the user’s mobile device. Combined with smart assistance functions, it minimises the number of balancing runs required, ensuring optimal safety and long-term operational reliability.

Video Thumbnail

Why Choose the Acoem Wireless Balancer?

Maximum safety & flexibility

  • No more cables allows you to move freely and work with greater safety around machinery. Avoid entanglements and stay clear of hazardous environments with no more cable interference with rotating parts
  • Remote access lets you step back from the machine and perform balancing operations from a safe distance up to 20 meters.

Unmatched precision & speed

  • Multi-sensor synchronisation means simultaneous measurement in 6 directions for quick amplitude and phase analysis with 4 directions used for more reliable balancing in a single touch
  • Vertical and horizontal measurements from both sensors are captured synchronously, simplifying the user’s task and significantly reducing balancing time
  • The ability to see both planes at the same time and switch from horizontal to vertical direction in one click greatly enhances the reliability of the process.

Fast learning curve: removing human errors from the process

  • Complete field visualisation with 360° machine rotation to avoid errors (direction of rotation, point 0 reference, counting direction etc.) and ensure precise weight placement
  • Guide U™ 3D graphical guidance at all stages of the process
  • Intelligent correction with smart balancing assistants (one-2 plane auto selection, trial weight suggestions, automatic weight distribution etc.).

Discover how FOCUS ENGINEERING boosts fan reliability with Acoem’s Wireless Balancer

Wireless Balancer Feature

Industry Ready

Designed to meet industrial needs, the Acoem Wireless Balancer is built to withstand the toughest conditions. Its robust design is capable of enduring extreme environments, ensuring reliable operation even in the most challenging settings.

Robust and Durable
Constructed with durable materials, the Acoem Wireless Balancer is engineered for longevity and stability. It’s resistant to vibration and external interference for reliable data collection even in harsh industrial environments.

Wireless Balancer Cost Effective

A cost-effective solution

Reduce maintenance costs by eliminating the need to replace, transport and clean 10 to 15 metres of cables per sensor. Cables are not only cumbersome, but also require frequent replacement, adding ongoing expenses throughout the tool’s lifespan.

All-in-One Solution

Seamless integration: Works with shaft alignment apps, Bearing Defender, Machine Defender, and integrates with NEST Vision.

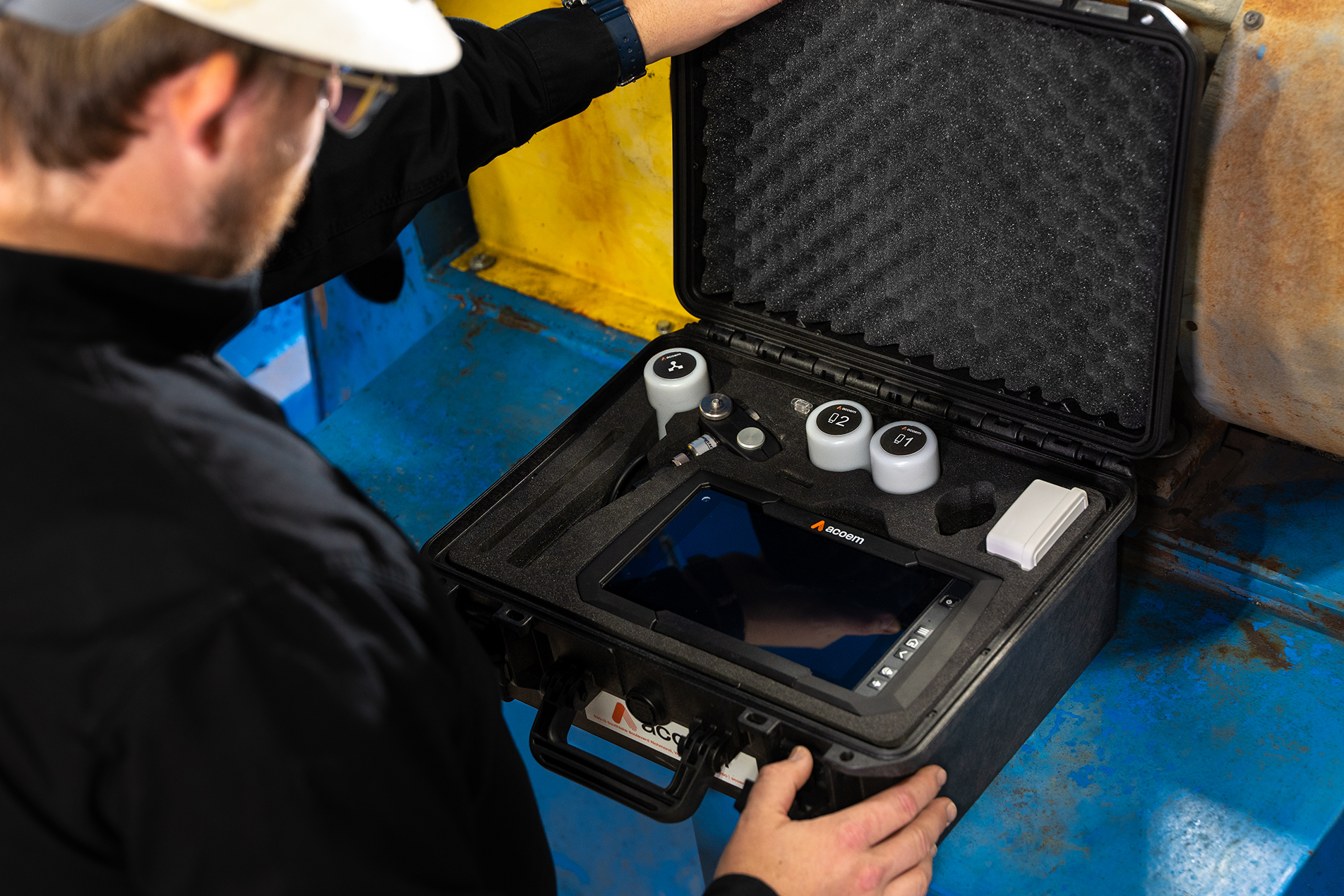

What’s Included:

Each Wireless Balancer is delivered with the following included hardware:

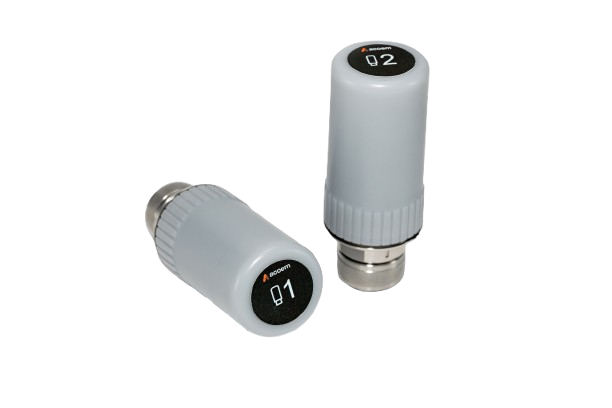

  • Wireless accelerometers with magnets suited for curved surfaces x2
  • Wireless WBS™ timekeeper with flat magnet
  • Power-up magnet
  • Laser tachometer w/ M12 connector
  • Magnet holder for laser tachometer
  • Reflective tape
  • Accessories box
  • USB memory stick Type A & C
  • 6x 3.7V AA Li-Ion rechargeable batteries
  • Safety instructions
  • Quick guide
  • Printed calibration certificate
  • Tablet or Acoem display unit*
  • Machine Defender triaxial sensor*
  • Optional: 1x Machine Defender sensor
  • Optional: 1x tablet or Acoem display unit
    • *= Optional
