Name: Acoem Falcon
Brand: Acoem
SKU: ACOEM-PVM-01
Availability: InStock

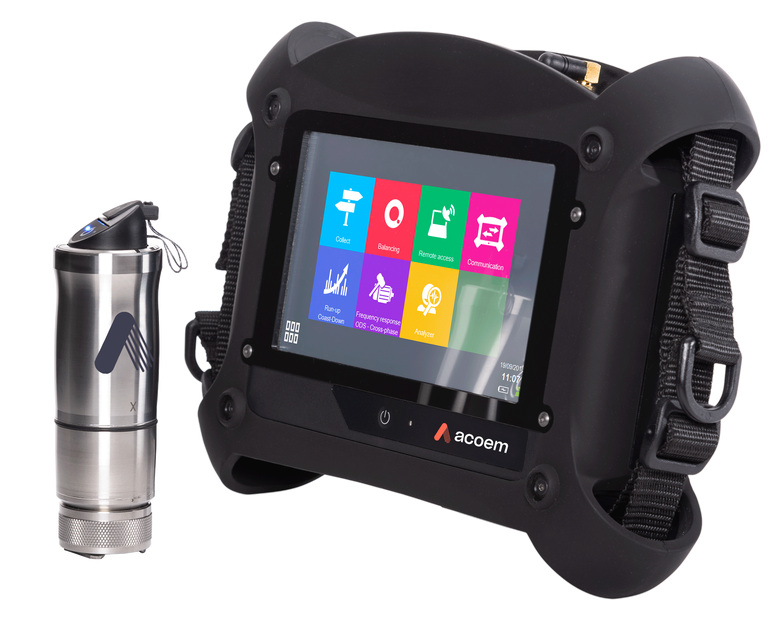

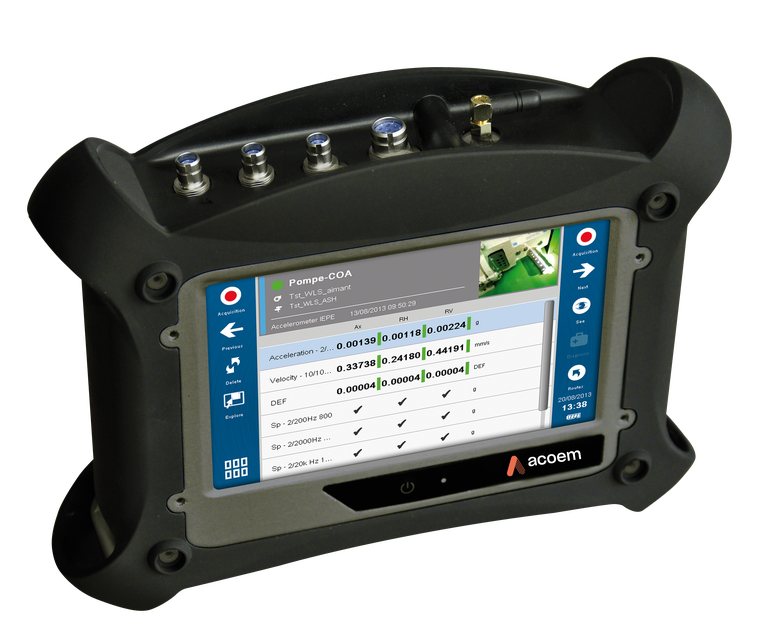

Acoem Falcon

FALCON adalah alat inovatif untuk pengukuran dan analisa getaran yang membuat pemeliharaan berbasis kondisi dapat diakses oleh semua pengguna.

Minta Penawaran

Produk ini sering digunakan bersama layanan Jasa Vibration Analysis dan Jasa Balancing

Features

Innovative wireless measurement

Acoem’s advanced system enables comprehensive vibration analysis with 2 triaxial wireless sensors, ensuring precise diagnostics across multiple axes

Dual-plane synchronous wireless balancing

Achieve superior machine balance with ACOEM WBS™ technology which synchronises vibration and tachometer data in real time

Control plane visualisation

See the impact of adjustments on the second plane instantly, helping you make better balancing decisions with greater accuracy

Resources

Falcon
Brochure

Falcon
Technical
Datasheet

See our technology in action.

Schedule a free demo to get a first-hand look at how our solutions support your business.

Schedule a free demo

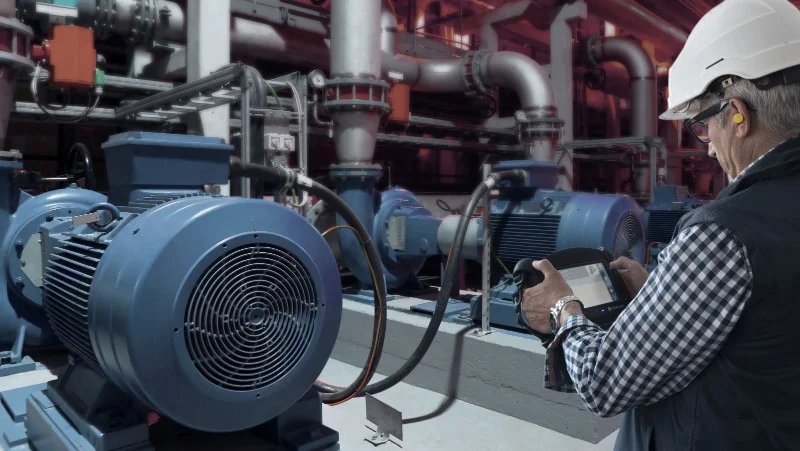

All-in-one

three-axis wireless sensor, taking simultaneous vibration measurements in all directions

built-in strobe light for rotation speed measurement

built in laser pyrometer for bearing temperature measurement

built in camera for easy machine identification, sensor positioning, and report illustration

embedded Accurex™ automatic diagnostic

4 analog channels for synchronous measurement, in addition to the trigger input

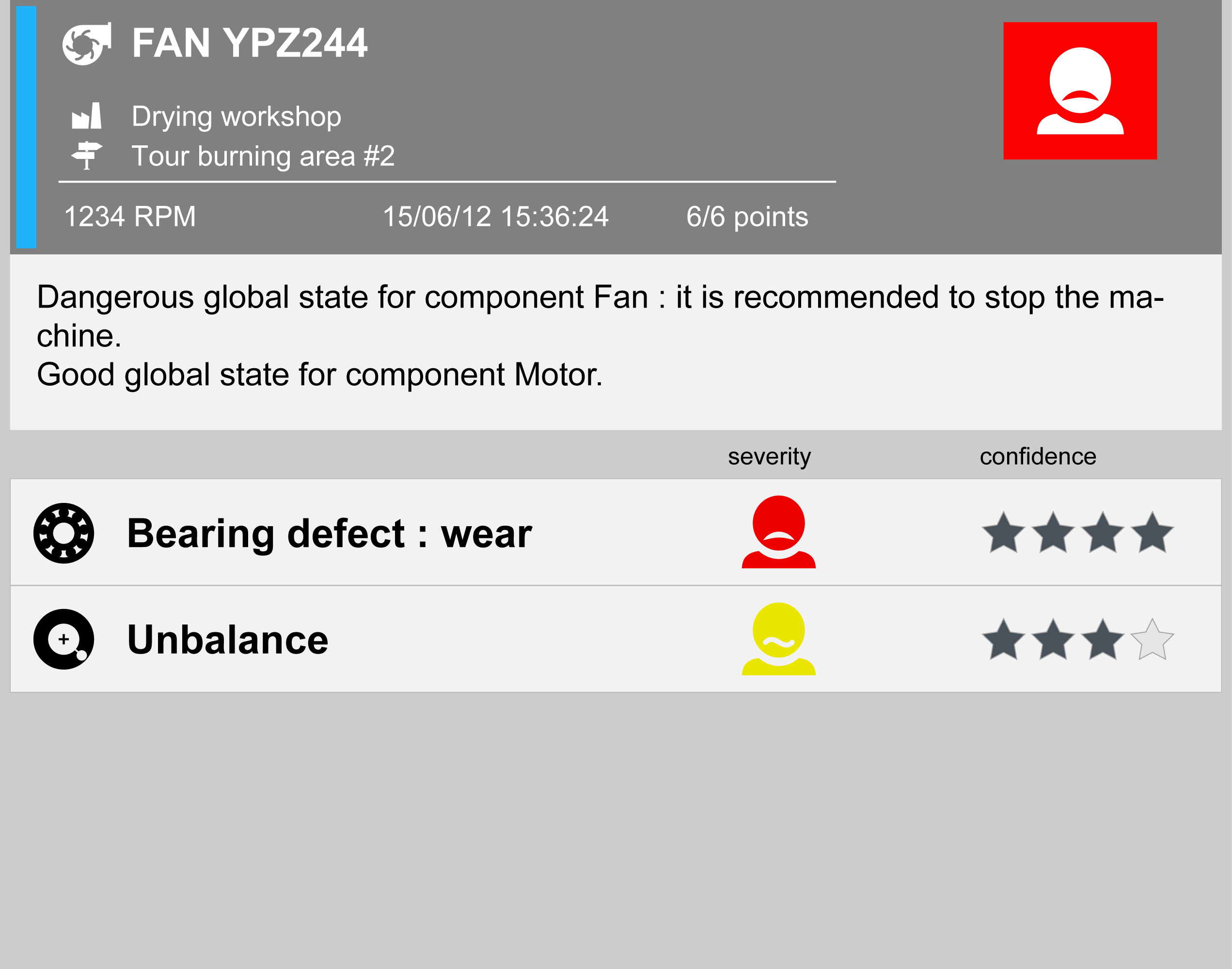

Accurex™ automatic diagnostic
                        FALCON allows making immediate use of the benefits of condition based maintenance: the Accurex™ automatic diagnostic works instantly based on the first measurement. Faults detected are available right in front of
                          the machine such enabling interaction with the user (bearing lubrication, temperature control…) and optimization of the maintenance process.


                        Based on the ISO 10816 standard and on Acoem 30+ years of experience, FALCON’s built-in automatic diagnostic module provides unbeatably relevant and reliable results. Clearly identified, machines are presented
                          with an overall risk assessment indicator to help the user prioritize his analysis on critical machines. Every fault detected is displayed with its severity, location on the machine, and confidence level (patented
                          solution).

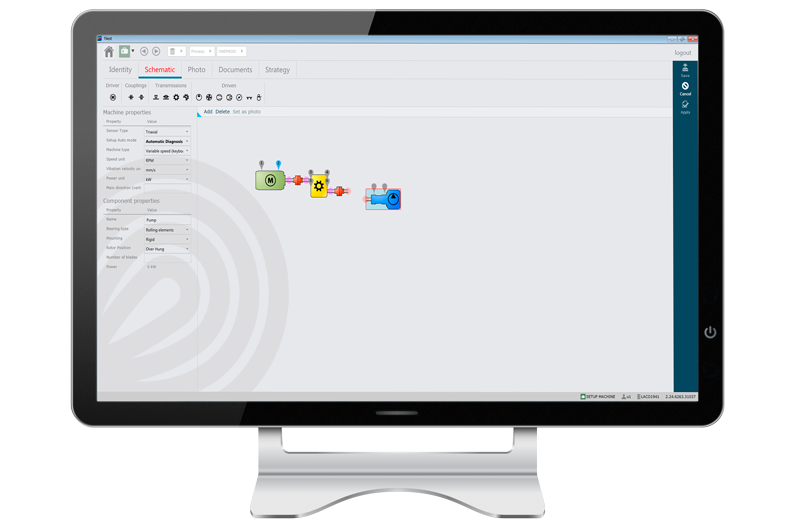

Automatic measurement setup

FALCON is within everyone’s grasp. What was once tedious is now a real child’s play, as configuration is carried out by providing a simple machine description of the machine’s kinematics via a built-in visual interface. Any rotating asset can now be setup within less than 2 minutes. All vibration measurement needed are there: ISO 10816 velocity, overall acceleration, bearing Defect Factor™, high resolution FFT and time waveform, and adding customized parameters can be done in only few clicks and on the whole database. Building a database has never been so easy!

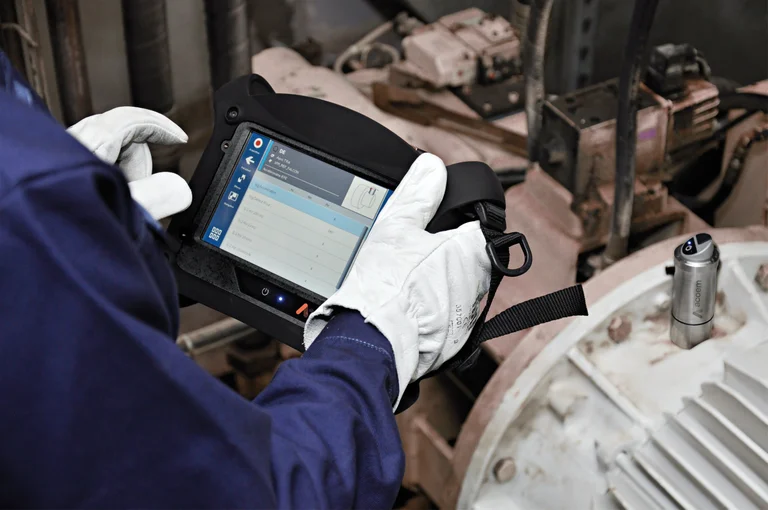

Measurement productivity
                        The wireless three-axis sensor and real-time processing capabilities literally cut times of vibration measurements: 8 seconds per bearing typical for measuring all X Y and Z directions with the highest quality set
                          of vibration data. With the use of pictures, the machine identification among a route has never been so easy: the user navigates on FALCON’s large colorful touchscreen from the top view of the plant to the sensor
                          position picture on the machine.

FALCON reduces the time and costs needed for on-site intervention to the absolute minimum. At the scale of a plant, FALCON really stands out.

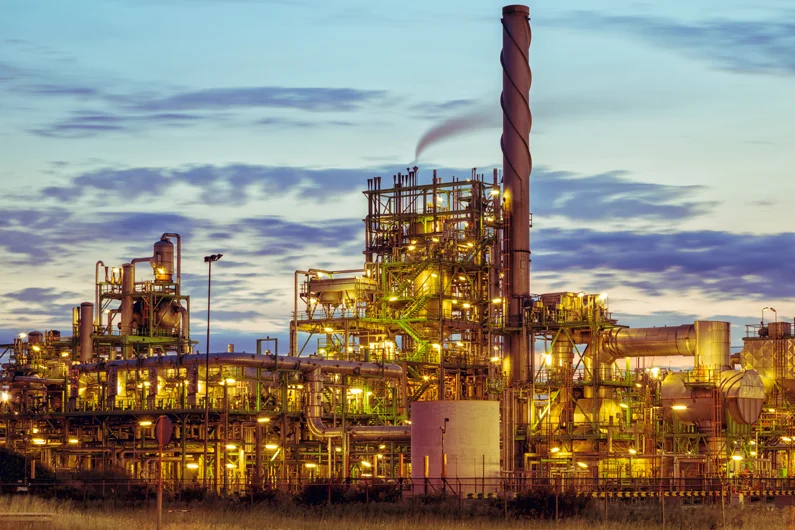

Reliable by designFALCON was designed for uncompromised industrial use in the harshest settings:

                        ATEX Zone 2
IP65
Withstands a 1.2-meter drop.


                        FALCON comes with a large color touch screen, which can even be used with safety gloves, a rubber grip for better handling and anti-shock resistance. The lack of cable makes the user working in safe condition,
                          within a range of 10 to 20m between the wireless sensor and the unit: measurements can be done under protective casings or behind doors, and the user no longer has to stay close to the machine in hot
                          environments.

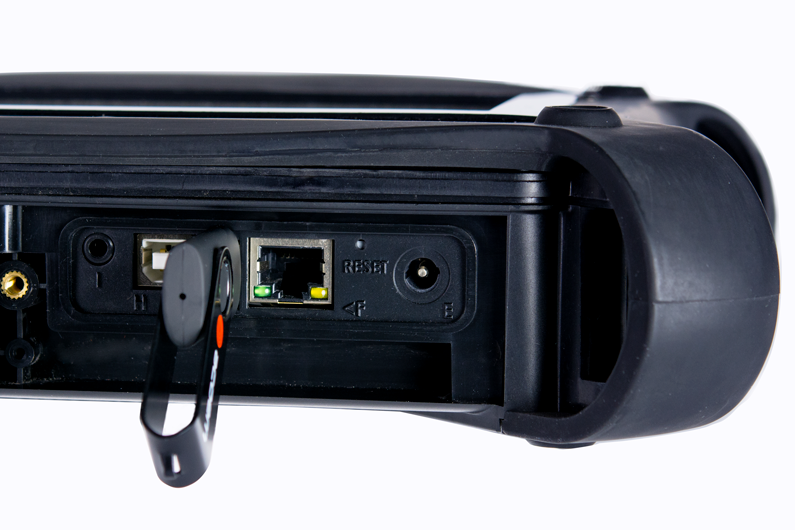

Great communicatorFALCON incorporates all modes of communication:

                        Wireless WiFi communication with the three-axis vibration sensor
Uploading/downloading of data by USB, Ethernet, Internet, standard WiFi protocol
Remote route exchange by email
Cloud access to the hosted platform


                        The FALCON collection and vibration analysis tool communicates data to the condition based maintenance platform equipped with the powerful NEST software, so that the data can be stored, analyzed, and reports
                          automatically published.


Applications

Discover Acoem’s case studies

Our case studies

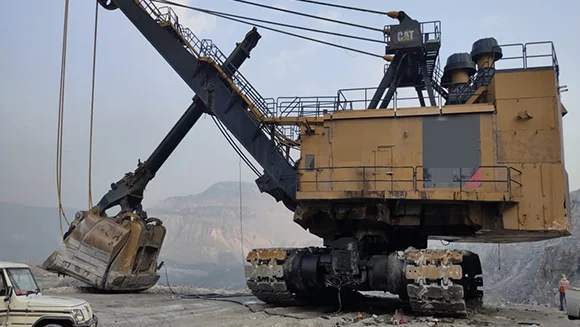

Improving Reliability and Performance for critical application Case study

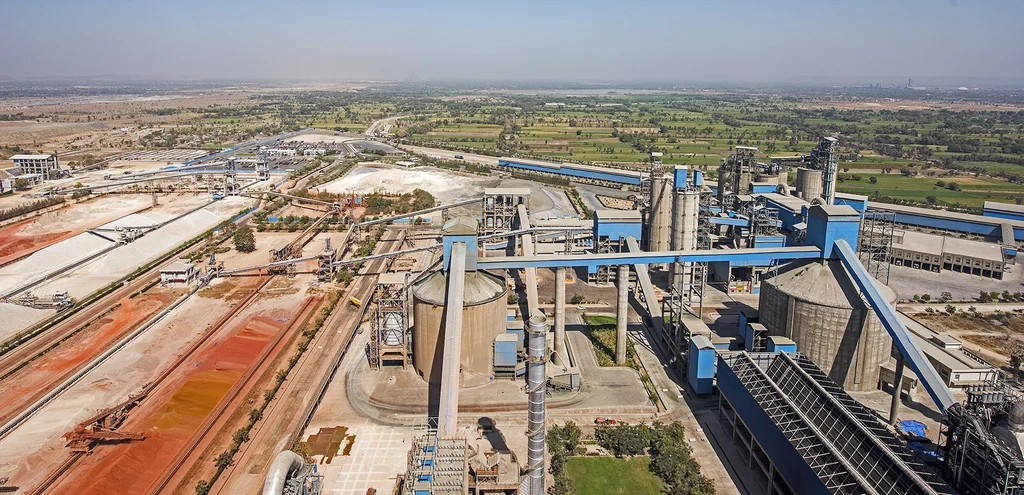

Early Fault Diagnosis of Roller Press Bearings Case study

Condition monitoring has never been so easy!

With FALCON, Acoem offers a collection, analysis and balancing tool with outstanding performance, accessible to all users.
Acoem has distilled its 30 years of experience with condition-based maintenance into FALCON. Highly experienced and novice users alike can now easily monitor machine vibrations and obtain highly pertinent results.
